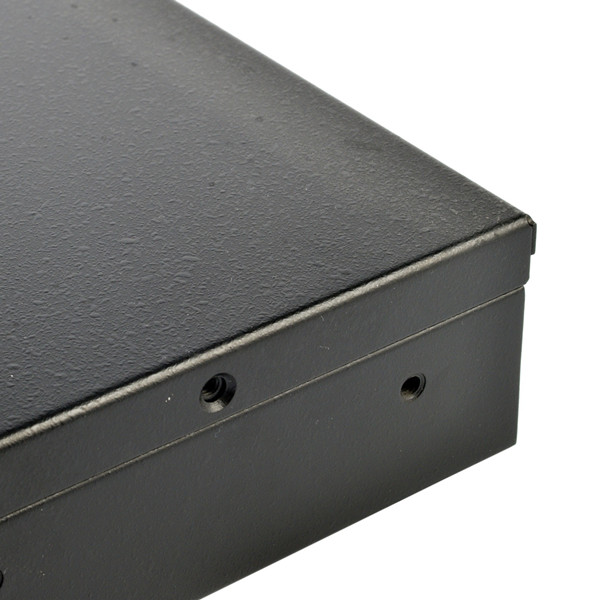

Electrical Metal Enclosures
Raw material: Stainless Steel, Aluminum, Copper, Brass, Iron, Galvanized, Carbon Steel SPCC, SPHCC SGCC,SECC.etc.Dimension: As Per Your Drawings.
Drawing format: PDF/DWG/DXF/IGS/STEP,etc.
Thickness: Customized Size to Match Your Drawings.
Tolerance: +/-0.01mm Heat treatment: Available.
Surface Treatment: Painting, Powder Coating, Mirror polishing, Anodize Oxidation,Screen -printing, Brushing, Hot-dip, Texture, Chrome Plating etc.
Processing: Laser Cutting, Bending, Riveting, Welding, Broaching, Drilling, Tapping, Precision Laser Cutting, Fiber Cutting, CNC Robot Bending, Riveting, Welding, Broaching, Drilling, Tapping, CNC Machining, Metal Finishing, Assembling etc.
MOQ: 1PC
Price: Negotiable
Electrical Metal Enclosures
How to Determine the Bending Sequence of Sheet Metal Bending?
- Short side first and then long side: Generally speaking, when there are bends on all four sides, the short side first and then the long side is conducive to the processing of workpieces and the assembly of bending molds.
- First the periphery and then the middle: under normal circumstances, it is generally bent from the periphery of the workpiece to the center of the workpiece.
- Part first and then whole: if there are some structures inside or outside the workpiece that are different from other bending structures, generally bend these structures first and then bend other parts.
- Considering the interference, reasonably arrange the bending sequence: the bending sequence is not invariable, and the processing sequence should be adjusted appropriately according to the shape of the bending or the obstacles on the workpiece.
QUICK LINKS: China Sheet Metal Parts | China Sheet Metal Manufacturer | Metal Manufacturing in China | China Metal Parts Manufacturer
In Addition, What Should We Pay Attention to When Sheet Metal Parts are Bent Many Times?
1. Whether the cutter of the bending machine meets the requirements of R on the drawing shall be considered.
2. Whether the cutting tool or fixture of the bending machine blocks the position of the next bending.
3. Whether the last bending has just rubbed or collided with the bending tool and fixture after this bending.
4. Whether the last one to be bent rubs and collides with the bending tool and fixture.
5. Whether the dimension of the last bend can be used as the positioning benchmark of the next bend.
